DL系列袋式過濾機是一種結構新穎、體積小、操作簡便靈活、節(jié)能、高效、密閉工作,適應性強的多用涂過濾設備,它廣泛適用于化工、涂料、油墨、食品等行業(yè).該機型有單聯過濾袋保護網均為不銹鋼制作,其余有碳鋼和不銹鋼制作兩種,供過濾不同介質的要戶選擇.

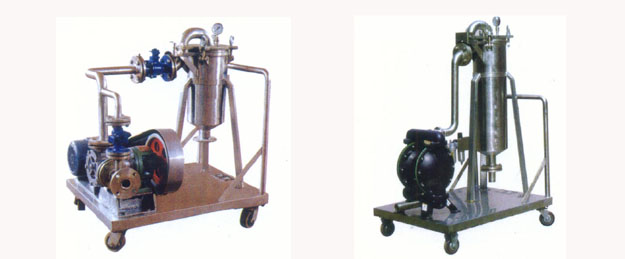

DL series bag filter is a kind of multi-purpose filter equipment with new structure、small volume、simple operation、energy saving、high efficiency、closed working and strong adaptability.lt is widely used at the chemical、coating、printing ink and food industries. This model machine includes the single filter and the duplex filter、forming completed set with the conveying pump unit assembled on the movable trolley respectively. The filter bag protection screen of filter is made of two sorts、carbon steel and stainless steel、optional depending on different filtered mediates users.
技術參數Specification
|
型號Model
參數Parameter |
DL1P1S |
DL1P2S |
DL2P1S |
DL2P2S |
|
過濾面積Filter area m2 |
0.25 |
0.5 |
0.25×2 |
0.5×2 |
|
工作壓力Pressuer Mpa |
0.6 |
0.6 |
0.6 |
0.6 |
|
工作溫度Temperature °c |
＜120 |
＜120 |
＜120 |
＜120 |
|
過濾精度Precision μm |
5.10.15.20.40.50.65.80 |
|
適用粘度Viscosity pa.s |
≤10 |
|
泵類配置Pump |
隔膜泵或齒輪泵Diapgragn pump or gear pump |
